Plastic support base for floating floor

Plastic Support Pedestals for Floating Floor1. Product DescriptonThese pedestals are made of enhanced polypropylene.They are widely used in areas such as water fountain, balcony and public square.It can be used to support WPC or metal joists as well as marble tiles.In addition, they are durable, easy to install and maintenance-f

Featured Products

Plastic Support Pedestals for Floating Floor
1. Product Descripton

These pedestals are made of enhanced polypropylene.
They are widely used in areas such as water fountain, balcony and public square.
It can be used to support WPC or metal joists as well as marble tiles.
In addition, they are durable, easy to install and maintenance-free.
Their enhanced PP material is not only environment friendly but also makes them highly resistant to corrosion and ageing.

Two thread base diameters include 160mm and 200mm. More choices for you to cope with different situations.


Plastic Support Pedestals for Floating Floor



Plastic Support Pedestals for Floating Floor
2. Product Images:

Plastic Support Pedestals for Floating Floor


HUZHOU XINFENG PLASTIC PEDESTAL
Model No.XF-T201D
Adjustable Range30~45mm
Base Diameter160mm or 200mm
Head Diameter110mm
Pcs per Carton48 pcs
Support500kg/pc (1000kg/m2)
Working life20 years
ColorBlack

Plastic Support Pedestals for Floating Floor
HUZHOU XINFENG PLASTIC PEDESTAL
Model No.XF-T202D
Adjustable Range45~80mm
Base Diameter160mm or 200mm
Head Diameter110mm
Pcs per Carton24 pcs
Support500kg/pc (1000kg/m2)
Working life20 years
ColorBlack

Plastic Support Pedestals for Floating Floor
HUZHOU XINFENG PLASTIC PEDESTAL
Model No.XF-T203D
Adjustable Range75~110mm
Base Diameter160mm or 200mm
Head Diameter110mm
Pcs per Carton24 pcs
Support500kg/pc (1000kg/m2)
Working life20 years
ColorBlack


Plastic Support Pedestals for Floating Floor

HUZHOU XINFENG PLASTIC PEDESTAL
Model No.XF-T204D
Adjustable Range76~155mm
Base Diameter160mm or 200mm
Head Diameter110mm
Pcs per Carton24 pcs
Support500kg/pc (1000kg/m2)
Working life20 years
ColorBlack

Plastic Support Pedestals for Floating Floor

HUZHOU XINFENG PLASTIC PEDESTAL
Model No.XF-T205D
Adjustable Range150~230mm
Base Diameter160mm or 200mm
Head Diameter110mm
Pcs per Carton12 pcs
Support500kg/pc (1000kg/m2)
Working life20 years
ColorBlack

- B series are ideal for traditional decking installation with joists.
- D and C series will make installation and leveling of tiles a easy task.
- E series are designed to achieve fast and toolless installation with our special designed aluminum joists.
  [Please don't hesitate to ask us for recommendation of most suitable products]


Plastic Support Pedestals for Floating Floor




Plastic Support Pedestals for Floating Floor
 3. Packing and Delivery:

Plastic Support Pedestals for Floating Floor

Packing: Carton Package or Pallet Package both are available.

Lead time: 3-15 days, according to the order quantity.

Incoterm: Supports EXW, FOB, CIF, DDU, etc.

Delivery: Professional shipping service help you solve all the shipping procedure.




Plastic Support Pedestals for Floating Floor
 4. Our advantages:


WHY XINFENG PEDESTALS
1. Anti-UV, non-poisonous and enviromental friendly material.
2. 500kg/piece loading capacity.
3. 20 years of expected working life.
4. Tested by CE and REACH.
5. Free samples.
6. OEM, ODM & LOGO customizing Service.
7. 30 years of manufacturing experience.
8. 12 years of WPC products manufacturing experience.





Plastic Support Pedestals for Floating Floor
 5. Installation:

Pedestals needed for per square meter
For Decking: 9 pcs/m2
For Tiles/Pavers:3-11 pcs/m2,  according to the Tiles Size.


Plastic Support Pedestals for Floating Floor
Step 1. Clean the ground and lay out the pedestals according to your design.
            Pedestals can be fixed to the ground with glue, concrete or expansion-screw.
Step 2. Lay down the joists, adjust the PP pedestals until all joists are on an even level.
            To adjust height, rotate the top cap of PP pedestal.
Step 3. Fixing the joists
            Fix the joist onto PP pedestals directly with screws from side and above.
Step 4. C and D series are designed for marble or stone tile.
            No joist is required, just rotate the pedestal to make the tiles on the same level.




Plastic Support Pedestals for Floating Floor
 6. Project Showcase:

Plastic Pedestals are the ideal choice for supporting decking boards, joists, terrace tiles, slabs, grates or any other pavement flooring.
Such as balcony, patio, swimming pool sides, roof, garden, fountain, park, square, outdoor walkways and platforms.
[Please don't hesitate to ask us for recommendation of most suitable products]

Plastic Support Pedestals for Floating Floor

Plastic Support Pedestals for Floating Floor

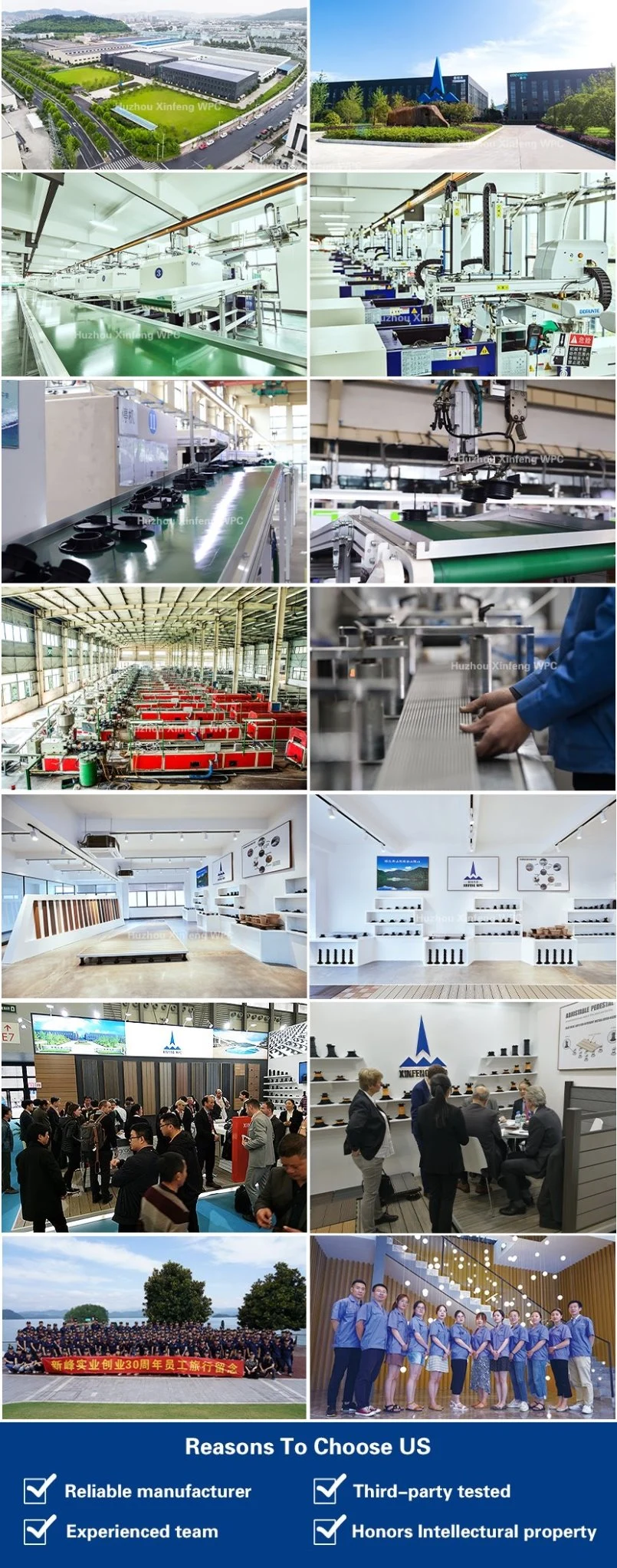

 7. Xinfeng Factory:

 1. Factory located in Deqing county, Huzhou City, Zhejiang province, 65,000 square meters area;
 2. Over 30 years of plastic products manufacturing experience;
 3. Automated production lines with skilled workers;
 4. A wide range products for option;
 5. Xinfeng products warmly welcomed by customers on Exhibitions;
 6. Professional Teams with passion.

Plastic Support Pedestals for Floating Floor



Huzhou Xinfeng Wood Plastic Composite Co.,Ltd is invested by Hangzhou Xinfeng Industry Co.,Ltd. It integrates R&D, production, sales capacity for specializing in WPC production.

The company keeps putting emphasis on technology innovation, has an excellent professional R&D team, and pays close attention to intellectual property protection. Through continuous efforts and innovation, the company got over
60 patents in China, European Union, United States and other countries. In addition, the products passed many tests of SGS, INTERTECK and some other international testing organizations. The products conform to the standards of European Union, such as CE, FSC, BSCI, etc.

Our main products include:
WPC decking, Decking Support Pedestal, WPC DIY tile, WPC Fence, WPC wall cladding and WPC flowerpot. These products are exported to more than 20 countries across Europe, North America, Japan and Southeast Asia.

At the same time, the company has been committed to environmental protection, and made unremitting efforts to build a green factory, produce green products and create a green home.


Plastic Support Pedestals for Floating Floor


Plastic Support Pedestals for Floating Floor
 8. Contact

     Xinfeng Pedestals can meet your needs for elevating the ground, adjusting the height of the floor, slope compensation of the ground, drainage for the roof and ground, etc.
     We have different series for varies situations.
     Please contact with us for the latest price and professional solutions.

     Choose Xinfeng, Choose Higher Quality, Choose Better Purchasing Experience.
